Big Dog Scrapers








































If your plans include feedlots, landscaping, terraces, waterways and driveways the BH Series is for you. BH Series have 24" high x 3/8" thick end plates, a hitch designed to accommodate tilt, and a dumping height up to 18". Units tilt right or left by using an 8" stroke cylinder extended or retracted.

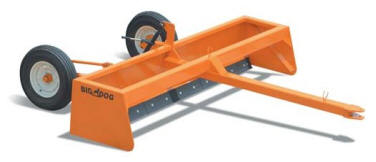

Model BH-10 Box Scraper

Heaped Capacity 1.8 yd.
Width of Cut 10'
Overall Width 10' 1"
1 pc. Blade Replaceable & Reversible*
Tractor Hyd. Requirements 2 Spool**
Power Requirements---Wheel Tractor NA
Bolt-On Spindles 5 Bolt Wheels with welded spindle
Tires 760 x 15
Optional Equipment Cylinders & Hoses, 3" Bore x 8" Stroke recommended





Model BH-12 Box Scraper

Heaped Capacity 2 yd.
Width of Cut 12'
Overall Width 12' 1"
1 pc. Blade Replaceable & Reversible*
Tractor Hyd. Requirements 2 Spool**
Power Requirements---Wheel Tractor NA
Bolt-On Spindles 5 Bolt Wheels with welded spindle
Tires 760 x 15
Optional Equipment Cylinders & Hoses, 3" Bore x 8" Stroke recommended



Back view of Scraper

  *BH and BH-100 use 6", 1-piece center punch blade that can be reversed.

**Lift and tilt each require hydraulic cylinder, 3" x 8" recommended.

Note: units can be operated with one 8" stroke cylinder on lift and replaceable stabilizing bar in lieu of cylinder.

Manufacturer reserves the right to make changes to the specifications without notice.
