Big Dog Scrapers




































Model S-6.5 Forced Ejection Scraper

Heaped Capacity 6.5 yd.
Width of Cut 7'
Overall Width 8'
3 pc. Blade Replaceable
Tractor Hyd. Requirements 2 Spool
Power Requirements---Wheel Tractor 100 - 150 HP
Bolt-On Spindles 8 Bolt Wheels
Tires 12.5 x 16.1 14 Ply
Optional Equipment NA

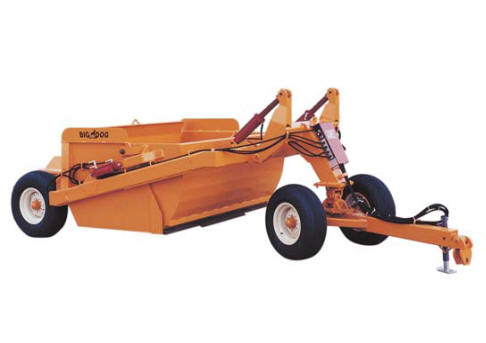

Big Dog Scraper Model S-6.5

S-6.5 Model offers independent hydraulic control of cutting and spreading and forced ejection. The push gate is operated with a single cylinder, stabilized by guides to prevent mis-alignment. Load, transport, spread and level with hydraulic controlled pushout---with a good view of machine operations by the operator.


Model S-8 Forced Ejection Scraper

Heaped Capacity 8 yd.
Width of Cut 7 1/2'
Overall Width 8 1/2'
3 pc. Blade Replaceable
Tractor Hyd. Requirements 2 Spool
Power Requirements---Wheel Tractor 125 - 175 HP
Bolt-On Spindles 8 Bolt Wheels
Tires 16.5 x 16.1
Optional Equipment NA

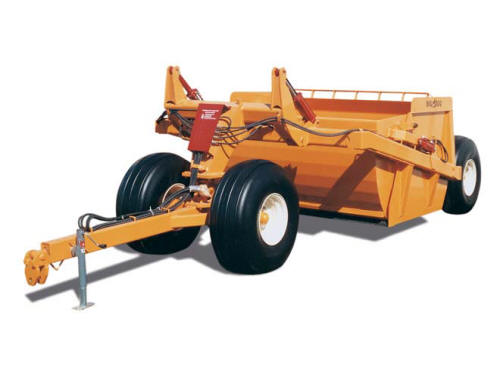

 Big Dog Scraper Model S-8

S-8 Model offers independent hydraulic control of cutting and spreading and forced ejection. The push gate is operated with a single cylinder, stabilized by guides to prevent mis-alignment. Load, transport, spread and level with hydraulic controlled pushout---with a good view of machine operations by the operator.


Model S-11 Forced Ejection Scraper

Heaped Capacity 11yd.
Width of Cut 7 1/2'
Overall Width 8 1/2'
3 pc. Blade Replaceable
Tractor Hyd. Requirements 2 Spool
Power Requirements---Wheel Tractor 160 - 240 HP
Bolt-On Spindles 8 Bolt Wheels
Tires 16.5 x 16.1 14 Ply
Optional Equipment NA

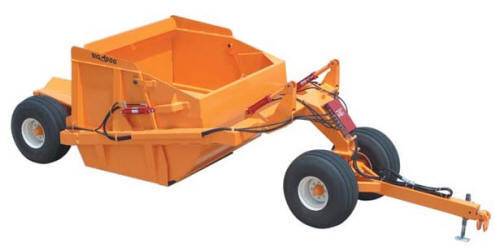

Big Dog Scraper Model S-11

S-11 Model offers independent hydraulic control of cutting and spreading and forced ejection. The push gate is operated with a single cylinder, stabilized by guides to prevent mis-alignment. Load, transport, spread and level with hydraulic controlled pushout---with a good view of machine operations by the operator. Plus, it offers the benefit of a larger payload for farm and industrial operations, including extra HD spindles, hubs and wheels matched with a hefty undercarriage and frame.





Additional Features



Stabilized Guides

Hydraulic Hose Guides

Pin Assembly

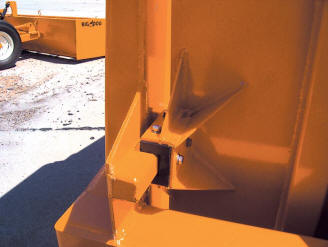

Stabilized by guides to prevent mis-alignment.

 Hydraulic hose guides.

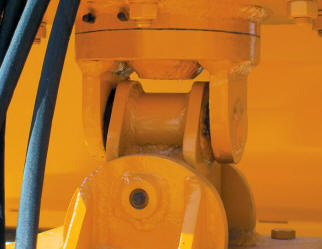

Replaceable gooseneck to axle swivel and pin assembly.
